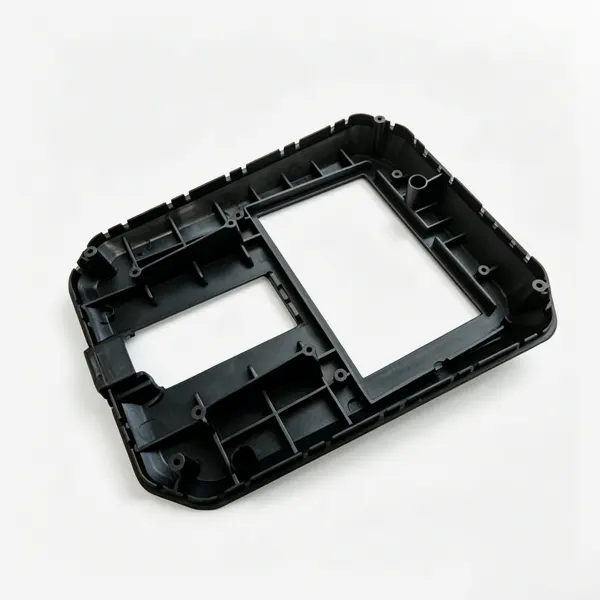

ABS Device Housing via Rapid Tooling
The enclosure is designed for electronic equipment, featuring complex internal structures including reinforcing ribs, screw bosses, display and component cutouts, and snap-fit edges. Rapid tooling enabled fast, low-cost production of this functional housing for prototyping and low-volume manufacturing.
Quick Info
- Process: Rapid Tooling + Injection Molding
- Material: ABS (Acrylonitrile Butadiene Styrene)
- Color & Finish: Black, matte as-molded texture
- Key Features: Reinforcing ribs, mounting bosses, display/component cutouts, snap-fit edges, multi-point assembly features
- Typical Applications: Consumer Electronics, Industrial Control Devices, Medical Equipment Enclosures, Automotive Electronics
- Tolerance: ±0.05–0.10 mm
- Surface Treatment: As-molded finish, optional painting/coating available
Get Free Quote
At KT, we combine rapid tooling with injection molding to deliver production-quality plastic parts in a fraction of the time and cost of traditional hard tooling. For this device housing project, we used our shared mold base system and CNC-machined inserts to create a functional mold, enabling hundreds of molding cycles. Our DFM optimization ensures parts like this housing have minimal warpage, consistent wall thickness, and reliable assembly features.
🛠️ Production Workflow
- DFM Analysis & Mold Design: Our engineers analyze the housing design to optimize wall thickness, draft angles, and rib placement, ensuring moldability and reducing risks like sink marks or warpage. We design the mold to include ejection features and runners tailored to the part’s complex structure.
- Rapid Tooling Fabrication: Using high-speed CNC machining, we create precision steel mold inserts for the housing. Combined with our shared mold base system, this cuts tooling lead time and cost by 30–50% compared to conventional hard tooling.
- ABS Injection Molding: Black ABS material is melted and injected into the mold under controlled temperature and pressure. The process is optimized to maintain consistent part quality across the housing’s ribs, bosses, and large cutouts.
- Post-Molding Finishing: Parts are trimmed, degated, and cleaned. All surfaces are inspected for burrs, warpage, or cosmetic defects to ensure they meet fit and finish requirements.
- Fit & Function Validation: The housing is assembled with internal components (circuit boards, displays, fasteners) to verify screw boss alignment, snap-fit functionality, and overall dimensional accuracy.
📋 Specification Table
| Item | Specification |
|---|---|
| Process | Rapid Tooling + Injection Molding |
| Material | ABS Plastic |
| Key Features | Reinforcing ribs, mounting screw bosses, display cutouts, snap-fit edges, complex internal geometry |
| Tolerance | ±0.05–0.10 mm |
| Color & Finish | Black, matte as-molded texture |
| Surface Treatment | As-molded finish, optional painting/coating available |
| Typical Lead Time | 7–15 days for tooling + first parts |
✅ Core Advantages
- Fast Time-to-Market: Rapid tooling eliminates the long lead times of traditional mold making, allowing you to validate designs and launch small production runs quickly.
- Cost-Effective Tooling: Shared mold bases and CNC-machined inserts reduce upfront costs, making this ideal for prototyping and low-volume production.
- Functional & Durable Parts: ABS offers excellent impact resistance, dimensional stability, and chemical resistance, suitable for electronic housings that require daily use and reliability.
- Precision & Consistency: The injection molding process ensures consistent quality across all critical features, including screw bosses, cutouts, and snap-fit edges.
- Design Flexibility: Quick tool iteration allows you to test different designs, colors, and textures without committing to expensive hard tooling.
- Seamless Scalability: Parts produced with rapid tooling molds are identical to those from production molds, enabling a smooth transition to mass manufacturing.
🎯 Applications
- Consumer Electronics Enclosures
- Industrial Control Devices
- Medical Equipment Housings
- Automotive Electronics Components
- Home Appliance Assemblies
