End-to-End Contract Manufacturing Since 2005
Modern workshops, advanced machinery, and strict process control ensure consistent quality from prototyping to mass production.
Get Free Quote
Equipment and Facilities
KT TOOL is a group company headquartered in Qingxi Town, Dongguan, Guangdong, China. Established in 2005, we have grown from a single CNC workshop into a world-class certified contract manufacturer occupying over 50,000 square meters of production floor with more than 500 skilled engineers, machinists, and quality specialists.
What sets KT TOOL apart from a typical machining job shop is our integrated, one-factory manufacturing model. Rather than outsourcing secondary operations and losing control over quality and lead time, we house every critical process under one roof: CNC machining (3-axis through 5-axis), sheet metal and stamping, injection molding, die casting, additive manufacturing, surface finishing, and a full metrology lab. This means your parts never leave our facility until they are finished, inspected, and packed for shipment.
CNC Machining Workshop
Precision subtractive manufacturing for prismatic, rotational, and complex multi-surface components
Our CNC machining workshop is the backbone of KT TOOL: Equipped with more than 30 machining centers from brands including DMG MORI, Mazak, Haas, and Fanuc, we offer a full range of CNC capabilities—from 3-axis vertical milling to full simultaneous 5-axis machining, as well as CNC turning with live tooling and sub-spindle.
The workshop features climate-controlled environments to ensure consistent dimensional stability. Our tool library holds over 2,000 professional cutting tools, supporting high-precision and high-efficiency machining.
Our Equipment List:
| Equipment | Brand / Model | Key Specs | Capability Advantage |
| 5-Axis Machining Center | Mazak VARIAXIS i-500 | 500 mm table, 18,000 RPM | Complex geometry in single setup — no re-fixturing error |
| 5-Axis VMC | DMG MORI DMU 65 | 650×600×500 mm, 18,000 RPM | Large work envelope for structural parts and fixtures |
| Horizontal Machining Center | DMG MORI NHX 4000 | 400 mm pallet, 15,000 RPM, 4-axis | Multi-face machining in one cycle — ideal for complex housings |
| Vertical Machining Center | Haas VF-4ss / Fanuc 0i | 1,016×508 mm table, 12,000 RPM | High-speed 3-axis and 4-axis milling for prismatic parts |
| CNC Lathe with Live Tooling | Mazak QTN-200 | Y-axis, sub-spindle, 5,000 RPM | Turned + milled features in one chucking — tighter concentricity |
| Large-Bore CNC Lathe | Doosan Puma 400 | Ø400 mm chuck, 2,000 RPM | Large-diameter shafts, sleeves, and rings |
| Swiss-Type CNC Lathe | Citizen L20 | Ø20 mm max bar, 0.001 mm | Micro-precision for medical and electronics components |
Need high-precision CNC parts? See how our machining capabilities support your project. Get CNC Solutions →
Sheet Metal Workshop
Our sheet metal workshop is built around a complete, industrial-grade production line—from precision cutting to high-volume forming and welding.We operate advanced equipment including Trumpf TruLaser 3030 for high-accuracy laser cutting, Amada HFE 100/3 for consistent CNC bending, and Amada Vipros 2510 for efficient turret punching. For high-volume production, our Aida 200 ton stamping systems ensure stable output and repeatability.
Below is an overview of the key equipment installed in our workshop：
| Equipment | Brand / Model | Key Specs | Capability Advantage |
| Fiber Laser Cutter | Trumpf TruLaser 3030 | 3 kW, 4,000×2,000 mm bed | Clean, burr-free cutting with minimal heat-affected zone |
| CNC Press Brake | Amada HFE 100/3 | 100 ton, 3,100 mm bed length | Accurate bending to ±0.05 mm on multi-bend sequences |

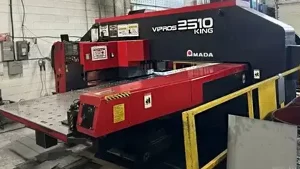

| CNC Turret Punch | Amada Vipros 2510 | 25 tons, 1,270×500 mm | High-speed hole and feature punching for batch production |

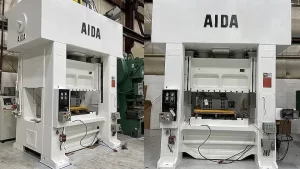

| Progressive Stamping Press | Aida 200 ton | 200 ton, 1,600 SPM max | High-volume stamped parts with consistent quality at low unit cost |

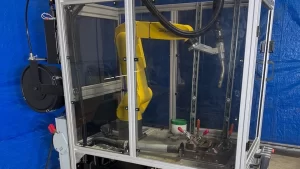

| Robotic Welding Cell | Fanuc / Lincoln Electric | 6-axis robot + MIG/TIG | Repeatable weld quality for enclosures and weldments |
| TIG / MIG Welding Stations | Multiple stations | Manual, all alloys | Complex assemblies requiring precision manual fit-up |
| Hardware Insertion Press | PennEngineering | Semi-auto, PEM inserts | Reliable threaded insert and stud installation |
Injection Molding Workshop
Our injection molding workshop is equipped to handle a wide range of production needs, from bridge tooling (100–5,000 parts) to high-volume manufacturing runs reaching millions of units. Built around a fully integrated in-house tooling system, we maintain full control over mold design, manufacturing, and maintenance, ensuring consistent quality, faster turnaround, and strong IP protection for our customers.
| Equipment | Brand / Model | Key Specs | Capability Advantage |

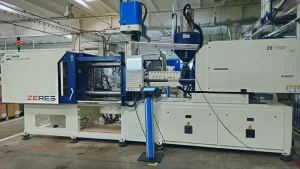

| Injection Molding Press | Haitian / Engel | 50 – 1,600 ton clamp | Covers micro-insert molding to large housing production |

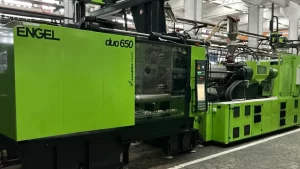

| Double-Shot Molding Press | Engel Duo | 350 ton, dual injection | Two-material overmolding in one cycle — no secondary op |
| LSR Molding Press | Engel Victory | 60 ton, LSR metering | Medical-grade silicone parts with clean-room capability |
| Mold Temperature Controller | MKR | Thermal reg. ±1°C | Consistent cycle times and surface finish quality |
Die Casting Workshop
Our die casting workshop is equipped with high-pressure casting systems designed for stable, repeatable production across both low-volume and high-volume manufacturing requirements.
The workshop supports the production of complex aluminum and zinc alloy components, delivering consistent quality and dimensional control across every batch.
Below is an overview of our die casting equipment：
| Equipment | Brand / Model | Key Specs | Capability Advantage |
| Cold Chamber Die Casting | Frech / Toyo | 160 – 1,250 ton clamp | Aluminum and zinc alloy castings with thin-wall capability |
| Die Polishing & Finishing | In-house tool room | CNC + manual polishing | Tool maintenance and surface finish optimization in-house |
3D Printing Workshop
Our 3D Printing is equipped with multiple advanced 3D printing technologies that expand our production capabilities beyond traditional machining.
We operate SLA systems for high-precision resin prototyping, SLS platforms for durable nylon functional parts, and DMLS metal additive systems for producing aluminum, stainless steel, and titanium components.
