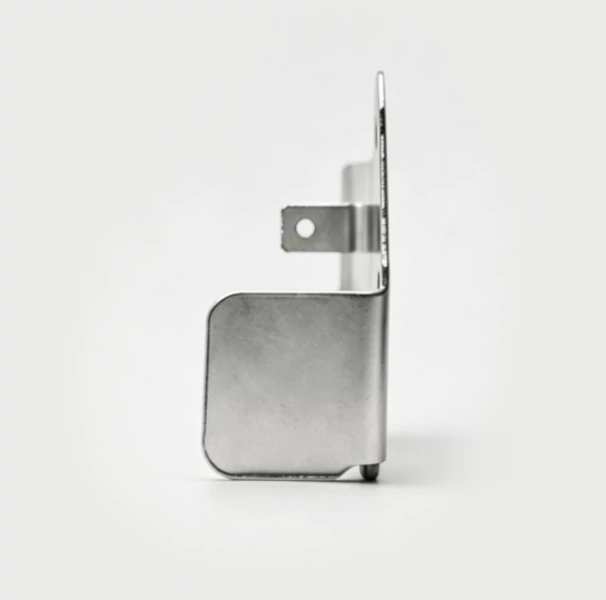

Custom Multi-Bend Steel Sheet Metal Mounting Bracket
This custom multi-bend galvanized steel bracket is a high-precision sheet metal component designed for multi-component integration and secure mounting in industrial equipment. With complex laser-cut profiles, multi-angle CNC bends, and precision locating holes, it delivers reliable structural rigidity and dimensional consistency. The galvanized steel material offers excellent corrosion resistance and cost-effectiveness for general industrial applications.
- Material: Steel
- Process: Laser Cutting+CNC Bending+Deburring
- Tolerance: ±0.1mm
- Surface Finish: Natural galvanized finish, anti-corrosion treated
- Key Feature: Multi-position mounting, complex forming, high assembly accuracy
- Application: Industrial automation equipment, electronic devices, communication cabinets
Get Free Quote
This precision-engineered sheet metal bracket is a typical demonstration of our capability in handling complex forming projects. The part features a fully customized laser-cut profile with irregular cutouts and locating holes, combined with multi-angle CNC bends that meet tight angular tolerance requirements.
The sample shown is made of galvanized steel, a carbon steel with a zinc coating that provides inherent corrosion resistance, good formability, and cost efficiency. The zinc layer eliminates the need for additional painting in most indoor or moderately corrosive environments, making it ideal for general industrial use.
Beyond galvanized steel, we offer a wide range of material options to suit different application needs, including 304/316 stainless steel, aluminum alloy, cold-rolled steel, and more. We can also support additional processes such as tapping, riveting, and surface treatments like powder coating, passivation, or anodization.
✅ Complex laser-cut profile with irregular cutouts and precision holes
✅ Multi-angle CNC bending with ±0.3° angular tolerance
✅ Galvanized steel material with built-in anti-corrosion protection
✅ Smooth deburred edges, safe and ready for assembly
✅ Customizable structure, size, and hole layout based on your drawings
✅ Strict quality control for consistent performance from prototype to mass production
| Parameter | Standard Specification |
|---|---|
| Base Material | Galvanized Steel (SPCC/SGCC) |
| Plate Thickness | 0.8–3.0mm (customizable) |
| Cutting Process | Fiber Laser Cutting |
| Cutting Tolerance | ±0.05mm |
| Bending Process | CNC Bending |
| Bending Tolerance | ±0.1mm / ±0.3° |
| Edge Treatment | Deburring & chamfering |
| Surface Treatment | Natural galvanized finish (optional powder coating, passivation) |
| Maximum Size | Customized according to drawing requirements |
| Lead Time | Prototype: 3–7 days; Mass production: 7–15 days |
