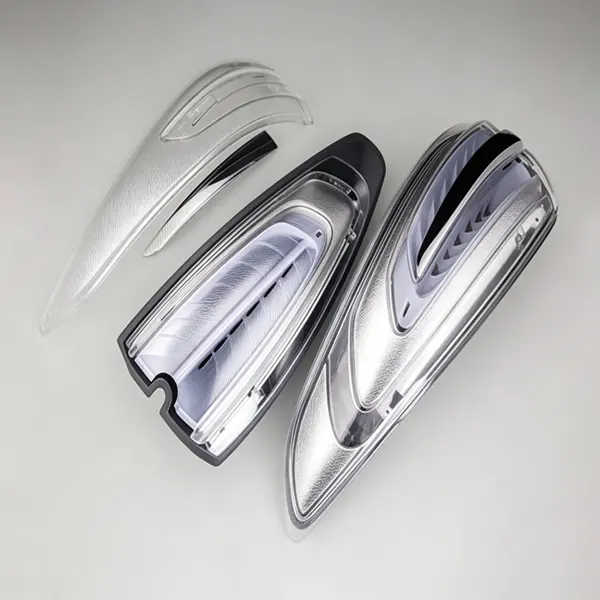

Rapid Tooling for Tail Light Prototypes

KT is a leading provider of rapid tooling and prototype manufacturing services, offering innovative solutions to meet the needs of industries such as automotive, consumer electronics, and more. With extensive experience and a customer-focused approach, KT delivers fast and cost-effective results for rapid prototyping and small-batch production.

Project Understanding and Solution

The customer required 200-300 sets of tail light prototypes for testing, with a tight deadline of two months. Traditional mass production molds would not be available for eight months, so KT used rapid tooling to create prototypes in time for the customer's testing and design modification needs.

1. Material Selection: Aluminum and steel were selected based on the mold complexity. Aluminum was used for quicker mold creation, while transparent resin was chosen for the outer lens to reduce costs.
2. Mold Design Optimization: The design was optimized by splitting complex mold cavities. For example, the reflector core was split into multiple parts to reduce machining time by over 50%, while maintaining the quality of the molds.
3. Stock Mold Bases: To save time and cost, KT used stock mold bases instead of creating new ones, ensuring the project stayed within budget and met the tight deadline.
4. Cost-Effective Mold Modifications: For the 2K molding process used in the outer lens, KT opted for a transparent base and applied painting or tinting later, significantly reducing the cost compared to creating separate molds for red and white components.

Advantages of Rapid Tooling

• Faster Production Cycle: Rapid tooling significantly reduces the lead time, allowing prototypes to be produced in weeks rather than months.
• Cost-Effective: Using aluminum and transparent resin instead of traditional injection molds cuts down the cost, making it ideal for low-volume production.
• Flexibility: The ability to adjust the mold design quickly allows for faster iterations and adaptations to changes in the product.
• Custom Materials: The use of real materials for the prototype testing ensures the final product meets the desired specifications.
• Optimized Design: By splitting complex mold cavities and using stock mold bases, KT maximized efficiency and minimized costs.

Application Industries

• Automotive: Rapid tooling is ideal for creating prototypes of car parts such as lights, bumpers, and interior components. The flexibility and speed make it suitable for fast-paced automotive development cycles.
• Consumer Electronics: This technique is widely used in prototyping components like casings, buttons, and connectors, ensuring functionality and form before full-scale production.
• Medical Devices: For prototypes of medical equipment components, rapid tooling allows for cost-effective testing and quick iteration.
• Aerospace: Rapid tooling helps create components for testing purposes, such as turbine blades, fuselage parts, and other structural elements in aerospace development.
• Consumer Goods: From household items to small appliances, rapid tooling provides manufacturers with quick access to test parts and prototypes for new product lines.

Key Benefits of This Project

• Speed: By using rapid tooling, KT was able to meet the customer's two-month deadline, far quicker than traditional mold-making methods.
• Quality Assurance: The use of high-quality materials such as aluminum for mold creation ensured the prototypes were durable and accurate.
• Cost Savings: The decision to use transparent resin for the 2K molding of the outer lens saved significantly on costs, reducing the financial burden of the project.

Key Benefits of Our Fast Prototyping Service

• Global Delivery: We offer worldwide shipping and ensure timely delivery of your prototypes to meet critical deadlines.
• Rapid Turnaround: We provide quick lead times ranging from 5 to 10 days for rapid prototypes, allowing you to test and refine your designs faster than ever before.
• Material Variety: We use a range of aluminum alloys such as 6061, 7075, and A356, tailored for different mechanical properties, from lightweight strength to high corrosion resistance.
• Precision Manufacturing: With tolerances as tight as ±0.05mm, we ensure that your prototypes achieve the highest levels of accuracy and consistency.
• Comprehensive In-house Services: From CNC milling, turning, and drilling to post-processing like anodizing, our fully integrated services ensure a streamlined production process.

Process

1. CAD Design: Begin with your CAD design files (STP, IGES, DXF, or PDF).
2. CNC Machining: Our CNC machines manufacture the parts from raw aluminum stock, ensuring precise dimensional accuracy.
3. Surface Finishing: We offer surface treatments like anodizing, sandblasting, and polishing to enhance aesthetics and functionality.
4. Inspection and Quality Control: Each part undergoes 100% inspection to ensure it meets stringent quality standards before shipping.

Applications of Aluminum Mechanical Parts Prototypes

Aluminum parts produced via fast prototyping are ideal for various applications across industries that require high precision and rapid turnarounds:

• Aerospace: Aircraft components, structural supports, and enclosures.
• Automotive: Engine parts, brackets, custom fixtures, and housings.
• Electronics: Enclosures, connectors, and heat sinks.
• Medical: Surgical instruments, device enclosures, and diagnostic equipment.
• Consumer Products: Lightweight frames, housings, and mechanical assemblies.

Why Choose KT TOOL for Your Rapid Prototyping Needs?

• Global Reach: We offer reliable and timely delivery to customers worldwide, ensuring that your projects stay on track.
• Wide Material Selection: We offer a broad range of aluminum alloys and other materials to meet your project’s specific mechanical properties and durability requirements.
• Expert Engineering Team: Our experienced engineers provide support throughout the design and production process, ensuring the optimal performance of your prototypes.
• High Precision: Our CNC machining process guarantees high precision with tolerances as tight as ±0.05mm, making our service ideal for demanding industries.
• Quick Turnaround: We understand the importance of speed in the prototyping stage, which is why we offer rapid prototyping with quick lead times.
• Competitive Pricing: Our cost-effective solutions allow you to develop high-quality prototypes without exceeding your budget.
